Russellstoll Power Whips

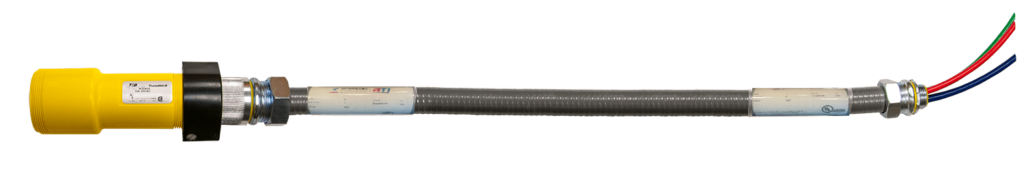

Industrial Pin and Sleeve Prefabricated Power Whips – Russellstoll

Built for Heavy-Duty Connectors and Mission-Critical Schedules

Vendor Support
We build to your specified industrial pin-and-sleeve ecosystem. Provide part numbers or callouts and we’ll match or cross-reference.
UL QQYZ
Assemblies produced under documented procedures with component traceability and label serialization.
100% Tested
Continuity & phase-rotation plus Hi-Pot; downloadable digital test certificates per serial number.

Common Industrial Pin-and-Sleeve Options We Support
Specify current, poles, voltage, connector rating, material, and cable/conduit needs. We will align conductor sizes, and strain relief to your specifications.

Connector Ratings
30 A • 60 A • 100 A • 150 A • 200 A • 400 A (others on request)
Voltage Families
120/208 V • 277/480 V • 347/600 V (50/60 Hz)

Connector
NEMA 3R/4/4X/12 • metallic or non-metallic housings • corrosion-resistant options

Typical Applications
High-current rack/row PDUs and busway drops
UPS, switchgear, and large equipment connections
Load-banking and temporary power sets

Assembly Options
Liquid-tight flexible metal or liquid flexible nonmetallic (LFNC) conduit
Color-coded leads and heat-shrink cable ID
Interlocked inlet assemblies and strain-relief fittings

Documentation
Bill of materials with connector callouts
Continuity/phase-rotation & Hi-Pot results
Label legend for panel/circuit/rack

FAQ

Frequently Asked Questions

Do you support specific industrial pin-and-sleeve ecosystems?
Yes. We can build to your specified ecosystem. Provide the part numbers or device callouts in your whip schedule; we can also cross-reference to available equivalents.

What information do you need to quote?
Amperage, poles, voltage, enclosure rating, material preference, cable length, conduit type, connector style, quantity, and required delivery date. Upload a whip schedule for fastest turnaround.

What testing is performed?
Continuity and phase-rotation plus Hi-Pot at 2× operating voltage (up to 1.5 kV AC). A digital test certificate is generated and stored per serial number.
